점도계

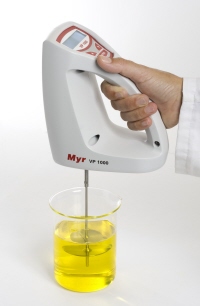

VP 1000 (휴대용 점도계)

특징 및 소개내용

Small and ergonomic instrument battery operated, which offers
and important autonomy to the end user.
Two lines digital display with back light, Viscosity reading appears
on screen together with full scale %.
Instrument dislays maximum measurement range when selecting spindle.

Display data
Speed rpm (depending on the version)
Spindle selected R2-R7 (R1 as option)
Dynamic viscosity mPas
Full scale percentage %
Full scale range (FSR) mPas
Battery status warning with self-disconnection

Specifications
Measuring Range

With standard spindle R2-R7: 66 to 66,600mPas/cP
(With optional spindle R1: 16-166mPas/cP)

Accuracy

±2% of full scale

Repeatability

±1%

Standard Spindles

R2, R3, R4, R5, R6, R7

Requirements

Alkaline battery 4xAA/LR6(6V)

Included Accessories

Carrying case, Complete set of spindles (R2-R7),
Spindle protector, assembly tools, 4 akaline batteries

Optional Accessories

Battery charger, Stand, Special spindle R1, Spindle rack,
Calibration standards(silicone)

Model Speed Viscosity range Viscosity range (R1)
VP 1020 20rpm 200 - 200.000mPas 50 - 500mPas
VP 1030 30rpm 130 - 133.300mPas 33 - 333mPas
VP 1050 50rpm 80 - 80.000mPas 20 - 200mPas
VP 1060 60rpm 66 - 66.600mPas 16 - 166mPas
