현미경

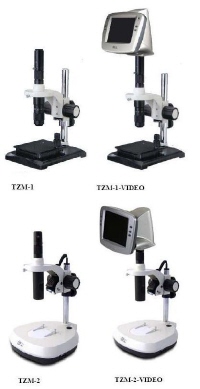

TZM Series

특징 및 소개내용

- Total 배율 : 0.7x ~ 90x

Model	TZM-1
Optical Format	Monocular Tube Zoom
Eyepieces	Wide field WF 10x/20mm
Objectives	ZOOM : 0.7x - 4.5x (1 :6.4)
Magnification*	7x - 45x (with 10x eyepiece)
Total 배율	0.7x - 90x
Field of view * *	10x (eyepiece)	Ø24.2 - 3.8mm
	1/3″camera	Ø17.0 - 2.7mm
	1/2″camera	Ø22.8 - 3.6mm
Adapters included	0.35x ; 0.5x ; 1x
Basement	200×230mm
XY stage	185×195mm. Excursion XY : 75×50mm (div.0.1mm)
Focus	Adjustable through knobs at both microscope’s sides
Addtional Objectives (optional)	0.3x ; 0.5x ; 0.75x ; 1.5x ; 2x
Working distance*	90mm (41 mm to 249 mm using additional objectives)
Illuminator	Optional Annular Fluorescent or LED illuminator
without additional objectives * with 0.5x adapter and without additional objectives

Model	TZM-2
Optical Format	Monocular Tube Zoom
Eyepieces	Wide field WF 10x/20mm
Objectives	ZOOM : 0.7x - 4.5x (1 :6.4)
Magnification*	7x - 45x (with 10x eyepiece)
Total 배율	0.7x - 90x
Field of view * *	10x (eyepiece)	Ø24,2 - 3.8mm
	1/3″camera	Ø17,0 - 2.7mm
	1/2″camera	Ø22,8 - 3.6mm
Adapters included	0.35x ; 0.5x ; 1x
Basement	200×230mm
XY stage	n.a.
Focus	Adjustable through knobs at both microscope’s sides
Addtional Objectives (optional)	0.3x ; 0.5x ; 0.75x ; 1.5x ; 2x
Working distance*	90mm (41 mm to 249 mm using additional objectives)
Illuminator	Transmitted and reflected. Halogen 20W, adjustable intensity. External power supply.
without additional objectives * with 0.5x adapter and without additional objectives
