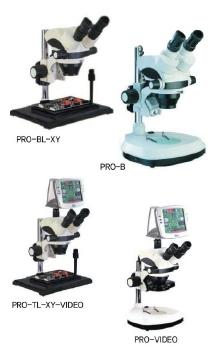

PRO-BL-XY
|
PRO-B
|
PRO-TL-XY-VIDEO
|
POR-VIDEO
| |
| STMPRO |
Pro-B |
Pro-BL |
Pro-BL-XY |
Pro-T |
Pro-TL |
Pro-TL-XY |
| Optical system |
Separated objectives |
| Head |
Binocular |
Trinocular |
45。tilted, 360。rotable.
Interpupillar distance adjustment 53-75mm, dioptric difference adjustment ±5 mm |
| Eyepieces |
Wide field WF 10x/22mm |
| Objectives |
ZOOM : 0.7x - 4.5x (1 :6.4) |
Magnification
(withoutadditional
objectives) |
7x - 45x |
| Total 배율 |
3.5x - 210x |
| Basement |
200×230mm |
230×300mm |
200×230mm |
230×300mm |
| XY stage |
n.a. |
185×195mm. Excursion XY:
75×50mm (div 0.1mm) |
n.a. |
185×195mm. Excursion XY:
75×50mm (div 0.1mm) |
| Focus |
Accurately adjustable through knobs located at both microscope’s sides |
Working distance
(without additional
objectives) |
90mm |
| Dark Field |
Opt. |
n.a. |
Opt. |
n.a. |
| Illuminator |
Transmitted and
reflected.
Halogen 20W.
Adjustable
intensity. External
power supply. |
|
Transmitted and
reflected.
Halogen 20W.
Adjustable
intensity. External
power supply. |
|
