¼öÁúºÐ¼®±â¥±

Electrode

Ư¡ ¹× ¼Ò°³³»¿ë

- Fast response and high accuracy, ideal fot field of lab application.
- Connector available with BNC, Spade Lug or DIN 7 pin and completes with 1m cable or others.
- Protective bottle with 4M KCI solution keep electrode wetting to extend electrode life.
SPECIFICATION

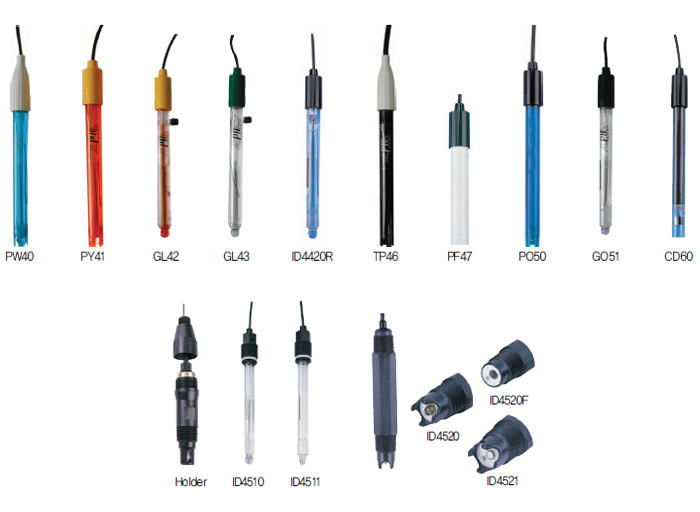

  Model Range Temp. Type Ref. Junction Refillable Body Connector Size(mm) Cable
pH PW 40 0-14 0-80¡É Ag/AgCI Ceramic No PC BNC 165x12 1m
PY 41 0-14 0-80¡É Ag/AgCI Ceramic No PC BNC 160x12 1m
GL 42 0-14 0-90¡É Ag/AgCI Ceramic Yes Glass BNC 155x12 1m
GL 43 0-14 0-90¡É Ag/AgCI Ceramic Yes Glass BNC 155x12 1m
TP 46P 0-14 0-80¡É Ag/AgCI Ceramic No PC BNC+3.5 ¬¶Plug 160x12 1m
TP 46T 0-14 0-80¡É Ag/AgCI Ceramic No PC BNC+3.5 ¬¶Plug 160x12 1m
PF 47 0-14 5-80¡É Ag/AgCI Cricoid Teflon No PVC BNC 106x15 1m
ID 4410 0-14 5-90¡É Ag/AgCI Ground glass sleeve No Glass Spade Lug 160x12 1.2m
ID 4420R 0-14 5-90¡É Ag/AgCI Ground glass sleeve Yes Glass Spade Lug 160x12 5.0m
ID 4510 0-14 5-90¡É Ag/AgCI Ground glass sleeve No Glass Spade Lug 155x12 1m
ID 4520 0-14 0-80¡É Ag/AgCI Cricoid Teflon No PPS Spade Lug 176x16 1m
ID 4520F 0-14 0-80¡É Ag/AgCI Cricoid Teflon No PPS Spade Lug 176x16 1m
Holder Material : PVC Size : 230 ¡¿ 38 mm (for ID 4510&4511)

ORP PO 50 ¡¾1500mV 0-80¡É Ag/AgCI Ceramic No PC BNC 160x12 1m
GO 51 ¡¾1500mV 0-80¡É Ag/AgCI Ceramic Yes Glass BNC 160x12 1m
ID 4511 ¡¾1500mV 5-90¡É Ag/AgCI Ground glass sleeve No Glass Spade Lug 155x12 1m
ID 4521 ¡¾1500mV 0-80¡É Ag/AgCI Cricoid Teflon No PPS Spade Lug 176x16 1m

Cell CD 60B K=1.0 0-90¡É N/A Pt plate N/A Glass BNC 155x12 1m
CD 60PD7 K=1.0 0-90¡É N/A Pt plate N/A Glass DIN 7 pin 155x12 1m
CD 60TD7 K=1.0 0-90¡É N/A Pt plate N/A Glass DIN 7 pin 155x12 1m
